7027073 | LAPP
PVC automotive cable ÖLFLEX TRUCK 170 FLRYY 13 x 9x1.5 mm² + 4x2.5 mm², unshielded, black, 7027073
Order No.: 33P2650
EAN: 4044774687292
MPN:
7027073
ÖLFLEX TRUCK 170 FLRYY 9x1,5+4x2,5
Series: ÖLFLEX TRUCK 170 FLRYY
Unit Price (€ / mtr.)
12.4593 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
12.46 € *
Price list
Quantity
Price per unit*
50 mtr.
12.4593 €
100 mtr.
11.4478 €
500 mtr.
10.4363 €
*incl. VAT plus shipping costs
**Subject to prior sale

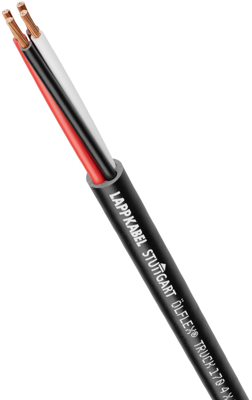

PVC power and control cable, 7027073, LAPP
The 7027073 is a PVC power and control cable designed for use in commercial vehicles under medium mechanical load conditions. Due to the ADR certificate this product is approved for electrical equipment in trailers and semi-trailers for the transport of dangerous goods.
Features
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | white | |
| Number of cores | 13 | |
| Version | automotive cable | |
| Outer diameter | 14.8 mm | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 9x1.5 mm² + 4x2.5 mm² | |
| Material | PVC | |
| Rated voltage | 60 V | |
| Test voltage | 5 kV | |
| Shielding | unshielded | |
| Protective conductor available | No | |
| Temperature range (unmoved) | -40 °C to 85 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
