7027089 | LAPP

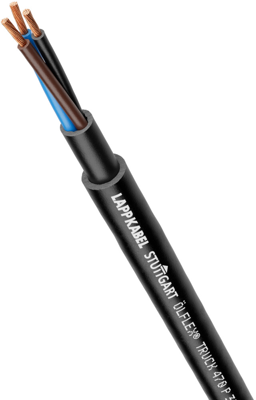

PUR automotive cable ÖLFLEX TRUCK 470 P FLRYY11Y 9 x 1x2.5 mm² + 8x1.5 mm², unshielded, black, 7027089
Order No.: 33P2655
EAN: 4044774687834
MPN:
7027089
ÖLFLEX TRUCK 470 P 1X2,5+8X1,5
Series: ÖLFLEX TRUCK 470 P FLRYY11Y
Unit Price (€ / mtr.)
7.4256 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
PUR/PVC power and control cable, 7027089, LAPP
The 7027089 is a PUR/PVC power and control cable designed for use in commercial vehicles under high mechanical load conditions. Because of ADR approval this product is approved for electrical equipment in all trailers and semi-trailers transporting hazardous goods.
Features
- Hydrolysis and microbe resistant
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | grau/violett | |
| Anzahl der Adern | 9 | |
| Ausführung | Fahrzeugleitung | |
| Außendurchmesser | 11.7 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1x2,5 mm² + 8x1,5 mm² | |
| Material | PUR | |
| Nennspannung | 60 V | |
| Prüfspannung | 5 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (unbewegt) | -40 °C bis 85 °C |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
