7027093 | LAPP

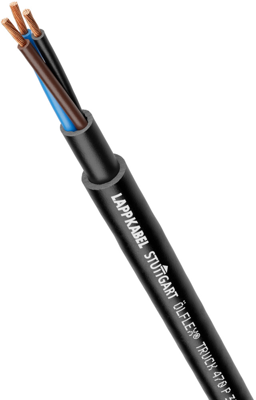

PUR automotive cable ÖLFLEX TRUCK 470 P FLRYY11Y 7 x 2x6.0 mm² + 3x1.5 mm² + 1x(2x1.5 mm²), unshielded, black, 7027093
Order No.: 33P2664
EAN: 4044774688015
MPN:
7027093
ÖLFLEX TRUCK 470 P 2x6,0+3x1,5+1x(2x1,5)
Series: ÖLFLEX TRUCK 470 P FLRYY11Y
Unit Price (€ / mtr.)
14.0777 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
PUR/PVC power and control cable, 7027093, LAPP
The 7027093 is a PUR/PVC power and control cable designed for use in commercial vehicles under high mechanical load conditions. Because of ADR approval this product is approved for electrical equipment in all trailers and semi-trailers transporting hazardous goods.
Features
- Hydrolysis and microbe resistant
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | rot/braun/schwarz/weiß/gelb/weiß-grau/weiß-braun | |
| Anzahl der Adern | 7 | |
| Ausführung | Fahrzeugleitung | |
| Außendurchmesser | 12.1 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2x6,0 mm² + 3x1,5 mm² + 1x(2x1,5 mm²) | |
| Material | PUR | |
| Nennspannung | 60 V | |
| Prüfspannung | 5 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (unbewegt) | -40 °C bis 85 °C |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
