7027094 | LAPP

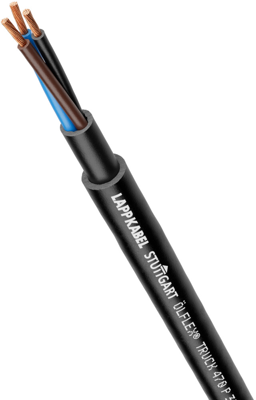

PUR automotive cable ÖLFLEX TRUCK 470 P FLRYY11Y 7 x 2x4.0 mm² + 3x1.5 mm² + 1x(2x1.5 mm²), unshielded, black, 7027094
Order No.: 33P2662
EAN: 4044774688060
MPN:
7027094
ÖLFLEX TRUCK 470 P 2X4+3X1,5+1X(2X1,5)
Series: ÖLFLEX TRUCK 470 P FLRYY11Y
Unit Price (€ / mtr.)
12.5902 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
PUR/PVC power and control cable, 7027094, LAPP
The 7027094 is a PUR/PVC power and control cable designed for use in commercial vehicles under high mechanical load conditions. Because of ADR approval this product is approved for electrical equipment in all trailers and semi-trailers transporting hazardous goods.
Features
- Hydrolysis and microbe resistant
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | red/brown/black/white/yellow/white-gray/white-brown | |
| Number of cores | 7 | |
| Version | automotive cable | |
| Outer diameter | 11.9 mm | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 2x4.0 mm² + 3x1.5 mm² + 1x(2x1.5 mm²) | |
| Material | PUR | |
| Rated voltage | 60 V | |
| Test voltage | 5 kV | |
| Shielding | unshielded | |
| Protective conductor available | No | |
| Temperature range (unmoved) | -40 °C to 85 °C |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
