44420090 | LAPP
Jack, crimp connection, screw locking, straight, 44420090
Order No.: 30P1149
EAN: 4044773801903
MPN:
44420090
EPIC POWER LS1 D6 5+PE 14-1720
Series: EPIC POWER LS1
Unit Price (€ / pc.)
19.2066 € *
Available: 0 pcs.
Leadtime: On Request **

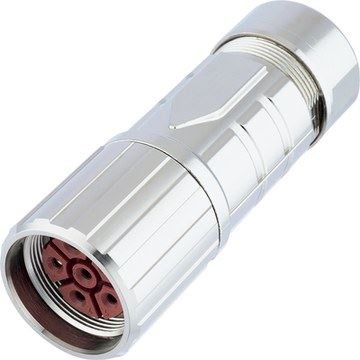

Circular connector, 44420090, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Optimum strain relief
- Space requirement
Applications
- Plant engineering
- Servo drives and Servo assemblies
Technical specifications
| Version | Kupplung | |
| Shell Material | Zinkdruckguss | |
| Cable diameter | 14 bis 17 mm | |
| Contact connection | Crimpanschluss | |
| contact surface | vergoldet | |
| Cable cross-section | 0,5-2,5 mm² | |
| Orientation | gerade | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
