44420135 | LAPP

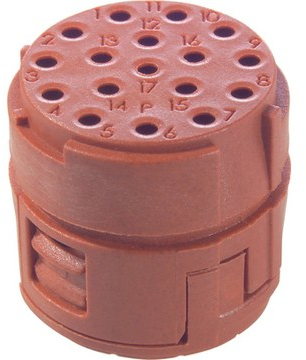

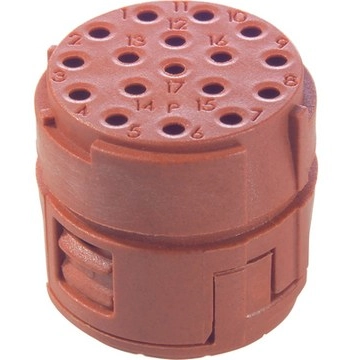

Contact insert, 17 pole, crimp connection, straight, 44420135
Order No.: 30P1611
EAN: 4044774388472
MPN:
44420135
EPIC SIGNALM2317P B D-SUB (20)
Series: EPIC SIGNAL M23
Unit Price (€ / pc.)
2.0587 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0587 €
5 pcs.
1.8445 €
10 pcs.
1.7493 €
20 pcs.
1.6422 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 44420135, Lapp Kabel
Inserts for M23 circular connector
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Mechanical resistance
- Assembly time
- Robust
- Variety of approval certifications
Applications
- Plant engineering
- Measurement and control technology
- Apparatus construction
Technical specifications
| Version | contact insert | |
| Shell Material | brass | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.08-0.56 mm² | |
| Orientation | straight | |

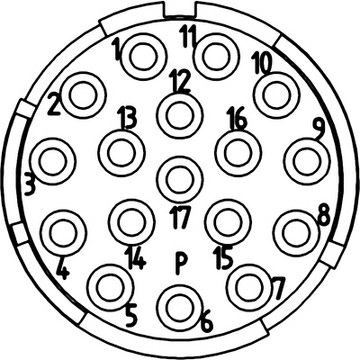

| Pin number | 17 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
