44423056 | LAPP

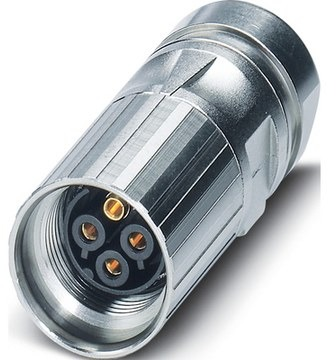

Plug, 5 pole, crimp connection, straight, 44423056
Order No.: 30P1307
EAN: 4044776704881
MPN:
44423056
EPICPOWERM17 D6 5+PE M3,5-11
Series: EPIC POWER M17
Unit Price (€ / pc.)
30.8210 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.82 € *
Price list
Quantity
Price per unit*
1 pcs.
30.8210 €
5 pcs.
29.1074 €
10 pcs.
27.3938 €
25 pcs.
25.6802 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 44423056, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Mechanical resistance
- Optimum strain relief
- Space requirement
- Interference signals
- Waterproof
Applications
- Servo drives and servo assemblies
- Plant engineering
- Machinery manufacturing
Technical specifications
| Version | plug | |
| Shell Material | zinc die casting | |
| Cable diameter | 3.5 to 11 mm | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.25-2.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
