44429304 | LAPP
Plug, 8 pole, crimp connection, straight, 44429304
Order No.: 30P1233
EAN: 4044775042168
MPN:
44429304
EPIC POWER LS1.5 F6 3+PE+4 14,
Series: EPIC POWER LS1.5
Unit Price (€ / pc.)
100.7097 € *
Available: 0 pcs.
Leadtime: On Request **

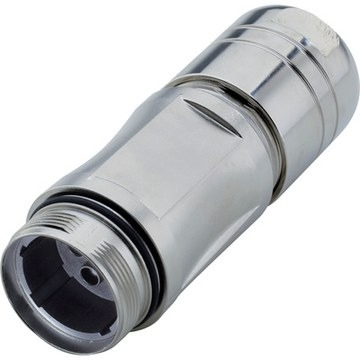

Circular connector, 44429304, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wide clamping range
- Mechanical resistance
- Optimum strain relief
- Robust
- Interference signals
- Waterproof
Applications
- Plant engineering
- Servo drives and servo assemblies
Technical specifications
| Version | plug | |
| Shell Material | zinc die casting | |
| Cable diameter | 14 to 20.5 mm | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75-10 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 8 pole |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
