72004200 | LAPP

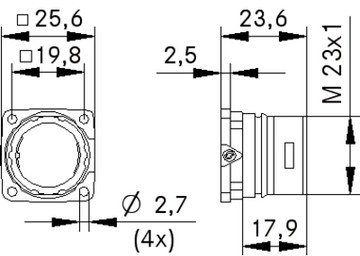

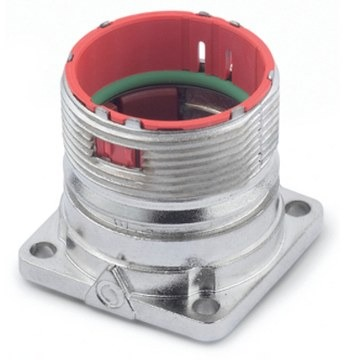

Surface mount housing, 4 pole, screw connection, screw locking, straight, 72004200
Order No.: 30P1529
EAN: 4044773621648
MPN:
72004200
EPIC SIGNAL M23 A1 +20 (5)
Series: EPIC SIGNAL M23
Unit Price (€ / pc.)
5.9857 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.99 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9857 €
5 pcs.
5.3907 €
10 pcs.
5.0932 €
20 pcs.
4.7957 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 72004200, Lapp Kabel
Circular connector for servo cables and encoders
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Robust
- Interference signals
- Waterproof
- Variety of approval certifications
Applications
- Plant engineering
- Servo drives and servo assemblies
- Measurement and control technology
Technical specifications
| Version | surface mount housing | |
| Shell Material | zinc die casting | |
| Contact connection | screw connection | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
