72044230 | LAPP
Plug, screw connection, screw locking, straight, 72044230
Order No.: 30P1619
EAN: 4044773623406
MPN:
72044230
EPIC SIGNALM23D6+20 7-10 5
Series: EPIC SIGNAL M23
Unit Price (€ / pc.)
14.7679 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.77 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7679 €
5 pcs.
13.2923 €
10 pcs.
12.5545 €
20 pcs.
11.8167 €
*incl. VAT plus shipping costs
**Subject to prior sale

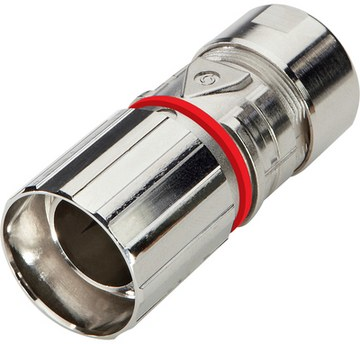

Circular connector, 72044230, Lapp Kabel
Circular connector for servo cables and encoders
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Optimum strain relief
- Robust
- Interference signals
Applications
- Plant engineering
- Servo drives and servo assemblies
- Measurement and control technology
Technical specifications
| Version | plug | |
| Shell Material | zinc die casting | |
| Cable diameter | 7 to 10 mm | |
| Contact connection | screw connection | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
