72064200 | LAPP
Plug, screw connection, screw locking, straight, 72064200
Order No.: 30P1635
EAN: 4044773623314
MPN:
72064200
EPIC SIGNALM23F6+20 9,5-13,5 5
Series: EPIC SIGNAL M23
Unit Price (€ / pc.)
11.8286 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.83 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8286 €
5 pcs.
10.6505 €
10 pcs.
10.0555 €
20 pcs.
9.4605 €
*incl. VAT plus shipping costs
**Subject to prior sale

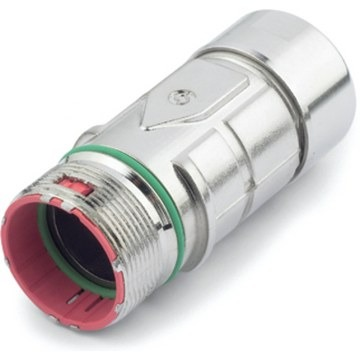

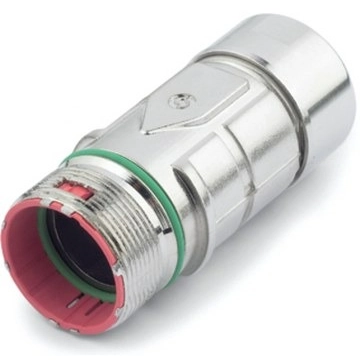

Circular connector, 72064200, Lapp Kabel
Circular connector for servo cables and encoders
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Optimum strain relief
- Robust
- Interference signals
Applications
- Plant engineering
- Servo drives and servo assemblies
- Measurement and control technology
Technical specifications
| Version | plug | |
| Shell Material | zinc die casting | |
| Cable diameter | 9.5 to 13.5 mm | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
