73000010 | LAPP
Plug, 8 pole, crimp connection, straight, 73000010
Order No.: 30P1171
EAN: 4044773623147
MPN:
73000010
EPIC POWER LS1 F6 3+PE+4 8,5-1
Series: EPIC POWER LS1
Unit Price (€ / pc.)
12.1261 € *
Available: 0 pcs.
Leadtime: On Request **

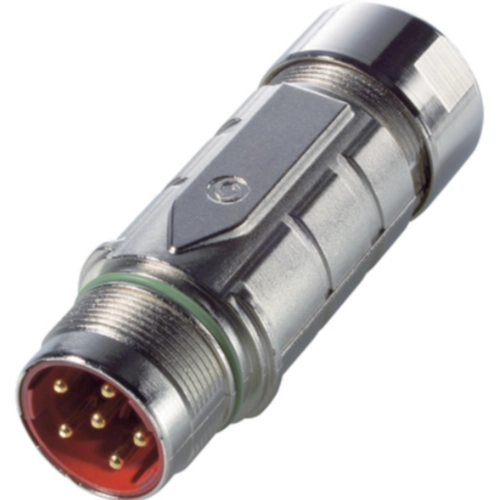

Circular connector, 73000010, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Optimum strain relief
- Space requirement
Applications
- Plant engineering
- Servo drives and servo assemblies
Technical specifications
| Version | plug | |
| Shell Material | zinc die casting | |
| Cable diameter | 8.5 to 11 mm | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5-2.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 8 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
