75009691 | LAPP

Plug, 6 pole, solder cup, screw locking, straight, 75009691

Order No.: 67F6208
EAN: 4044774419268
MPN:
75009691
EPIC KIT LS1 A1 6-POL

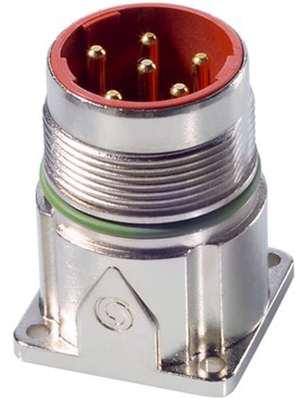

75009691 LAPP Other Circular Connectors Image 1

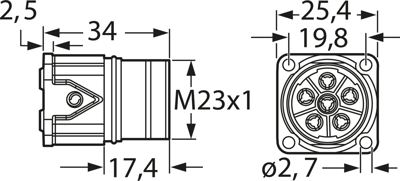

75009691 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
57.8697 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
57.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
57.8697 €

Circular connector kits, type LAPP EPIC CIRCON LS1.

with safe protection against vibration, corrosion and EMC radiation, shield connection terminal, clearly visible and perceptive plugging, label field with removable transparent ring, with crimp terminals. Rated voltage: 630/250 V. Rated surge voltage: 6.0/4.0 kV. Rated current: 22/7.0 A. Contact resistance: < 4.0 mohm. Cable clamping range: 7.5 to 15.5 mm. Terminal cross-section: 0.5 to 2.5/0.14 to 1.0 mm². Contact material: gold-plated brass. Degree of soiling: 3. Operating temperatures: - 25 to +125 °C. Certifications: VDE, UL, CSA.

6-pole with 2.0 mm contacts.

Number of contacts: 5 + PE.

Technical attributes (type, version): 75009691, male chassis socket

Technical specifications
Ausführung Stecker
Gehäusematerial Zinkdruckguss
Kontaktanschluss Lötkelch
Kontaktoberfläche vergoldet
Leiterquerschnitt 0,5-2,5 mm²
Montage Panelmontage
Orientierung gerade
Polzahl 6-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
