75009693 | LAPP

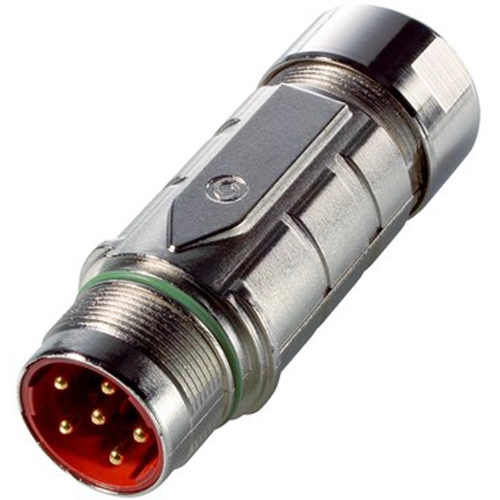

Plug, 6 pole, solder cup, screw locking, straight, 75009693
Order No.: 67F6204
EAN: 4044774419237
MPN:
75009693
EPIC KIT LS1 F6 6-POL
Unit Price (€ / pc.)
57.2985 € *
Available: 0 pcs.
Leadtime: On Request **

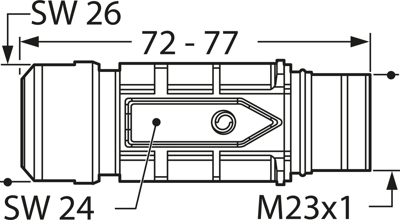

Circular connector kits, type LAPP EPIC CIRCON LS1.
with safe protection against vibration, corrosion and EMC radiation, shield connection terminal, clearly visible and perceptive plugging, label field with removable transparent ring, with crimp terminals. Rated voltage: 630/250 V. Rated surge voltage: 6.0/4.0 kV. Rated current: 22/7.0 A. Contact resistance: < 4.0 mohm. Cable clamping range: 7.5 to 15.5 mm. Terminal cross-section: 0.5 to 2.5/0.14 to 1.0 mm². Contact material: gold-plated brass. Degree of soiling: 3. Operating temperatures: - 25 to +125 °C. Certifications: VDE, UL, CSA.
6-pole with 2.0 mm contacts.
Number of contacts: 5 + PE.
Technical attributes (type, version): 75009693, male plug
Technical specifications
| Version | plug | |
| Shell Material | zinc die casting | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5-2.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
