75009694 | LAPP

Jack, 8 pole, solder cup, screw locking, straight, 75009694

Order No.: 67F6216
EAN: 4044774419848
MPN:
75009694
EPIC KIT LS1 D6 8-POL

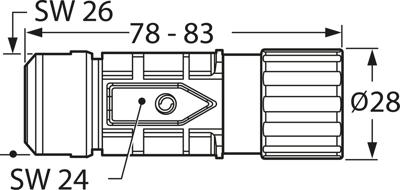

75009694 LAPP Other Circular Connectors Image 1

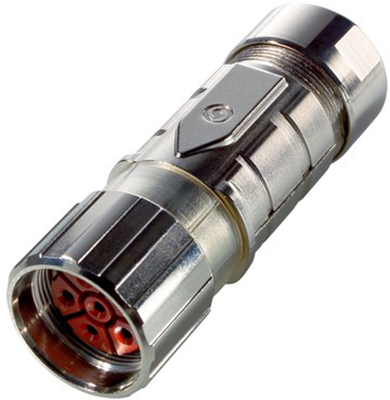

75009694 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
51.0391 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
51.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
51.0391 €

Circular connector kits, type LAPP EPIC CIRCON LS1.

with safe protection against vibration, corrosion and EMC radiation, shield connection terminal, clearly visible and perceptive plugging, label field with removable transparent ring, with crimp terminals. Rated voltage: 630/250 V. Rated surge voltage: 6.0/4.0 kV. Rated current: 22/7.0 A. Contact resistance: < 4.0 mohm. Cable clamping range: 7.5 to 15.5 mm. Terminal cross-section: 0.5 to 2.5/0.14 to 1.0 mm². Contact material: gold-plated brass. Degree of soiling: 3. Operating temperatures: - 25 to +125 °C. Certifications: VDE, UL, CSA.

8-pole with 2.0 mm and 1.0 mm contacts.

Number of contacts: 3 + PE (2.0 mm contacts) + 4 (1.0 mm contacts).

Technical attributes (type, version): 75009694, female cable connector

Technical specifications
Ausführung Kupplung
Gehäusematerial Zinkdruckguss
Kontaktanschluss Lötkelch
Kontaktoberfläche vergoldet
Leiterquerschnitt 0,5-2,5 mm²
Montage Kabelmontage
Orientierung gerade
Polzahl 8-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
