75009695 | LAPP

Plug, 8 pole, crimp connection, screw locking, straight, 75009695

Order No.: 67F6218
EAN: 4044774419831
MPN:
75009695
EPIC KIT LS1 A1 8-POL

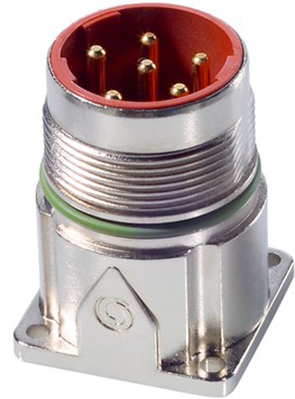

75009695 LAPP Other Circular Connectors Image 1

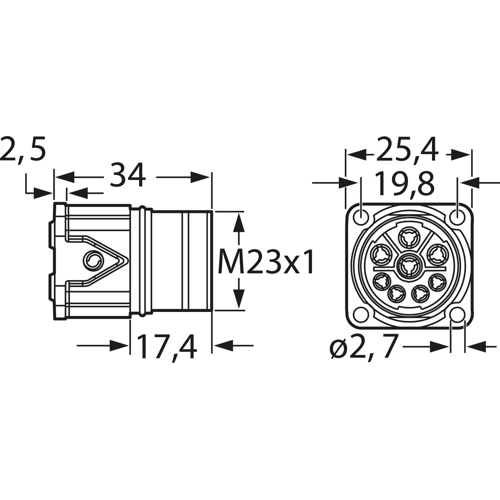

75009695 LAPP Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
34.6647 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
34.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
34.6647 €

Circular connector kits, type LAPP EPIC CIRCON LS1.

with safe protection against vibration, corrosion and EMC radiation, shield connection terminal, clearly visible and perceptive plugging, label field with removable transparent ring, with crimp terminals. Rated voltage: 630/250 V. Rated surge voltage: 6.0/4.0 kV. Rated current: 22/7.0 A. Contact resistance: < 4.0 mohm. Cable clamping range: 7.5 to 15.5 mm. Terminal cross-section: 0.5 to 2.5/0.14 to 1.0 mm². Contact material: gold-plated brass. Degree of soiling: 3. Operating temperatures: - 25 to +125 °C. Certifications: VDE, UL, CSA.

8-pole with 2.0 mm and 1.0 mm contacts.

Number of contacts: 3 + PE (2.0 mm contacts) + 4 (1.0 mm contacts).

Technical attributes (type, version): 75009695, male chassis socket

Technical specifications
Ausführung Stecker
Gehäusematerial Zinkdruckguss
Kontaktanschluss Crimpanschluss
Kontaktoberfläche vergoldet
Leiterquerschnitt 0,5-2,5 mm²
Montage Panelmontage
Orientierung gerade
Polzahl 8-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
