76124000 | LAPP
Jack, 8 pole, crimp connection, straight, 76124000
Order No.: 30P1140
EAN: 4044773490428
MPN:
76124000
EPIC POWER LS1 D6 3+PE+4 K 7,5
Series: EPIC POWER LS1
Unit Price (€ / pc.)
35.5096 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
35.51 € *
Price list
Quantity
Price per unit*
1 pcs.
35.5096 €
10 pcs.
32.4751 €
50 pcs.
30.4402 €
100 pcs.
28.4172 €
*incl. VAT plus shipping costs
**Subject to prior sale

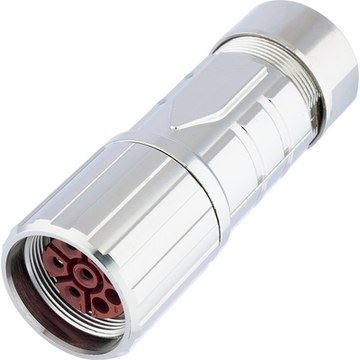

Circular connector, 76124000, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Space requirement
- Robust
Applications
- Plant engineering
- Servo drives and servo assemblies
Technical specifications
| Ausführung | Kupplung | |
| Gehäusematerial | Zinkdruckguss | |
| Kabeldurchmesser | 7,5 bis 15,5 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 8-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
