76144510 | LAPP

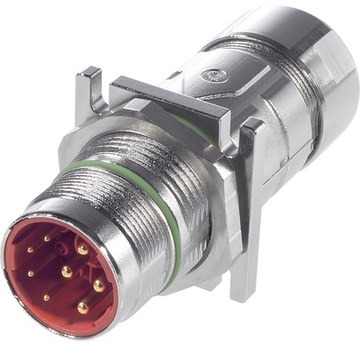

Panel plug, 8 pole, crimp connection, straight, 76144510
Order No.: 30P1184
EAN: 4044773533453
MPN:
76144510
EPIC POWER LS1 F7 3+PE+4 7,5-1
Series: EPIC POWER LS1
Unit Price (€ / pc.)
15.9698 € *
Available: 0 pcs.
Leadtime: On Request **
Circular connector, 76144510, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Space requirement
- Robust
Applications
- Plant engineering
- Servo drives and servo assemblies
Technical specifications
| Version | Einbaustecker | |
| Shell Material | Zinkdruckguss | |
| Cable diameter | 7,5 bis 15,5 mm | |
| Contact connection | Crimpanschluss | |
| contact surface | vergoldet | |
| Cable cross-section | 0,5-2,5 mm² | |
| Assembly | Panelmontage | |
| Orientation | gerade | |
| Pin number | 8-polig |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
