2171079 | LAPP

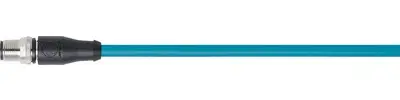

Patch cable, M12-cable plug, straight to open end, Cat 5e, SF/UTP, 1 m, blue, 2171079
Order No.: 33P4425
EAN: 4044776437123
MPN:
2171079
IE-5-M12D-S-1-H-2-26-7-OE
Unit Price (€ / pc.)
21.3962 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor-actuator cable, 2171079, LAPP
Industrial Ethernet Patchcord, Cat.5e, straight plug M12 on free conductor end, D-coded, halogen-free, flexible
Features
- Mechanical and plant engineering
- Halogen-free
- Assembly time
- Interference signals
- Waterproof
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Version | patch cable | |
| AWG cross-section | AWG 26-7 | |
| Colour | blue | |
| Halogen free | Yes | |
| Cable type | SF/UTP | |
| Cable length | 1 m | |
| Category | Cat 5e | |
| Detent lever protection available | No | |
| Degree of protection (IP) | IP67/IP69 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
