2171106 | LAPP

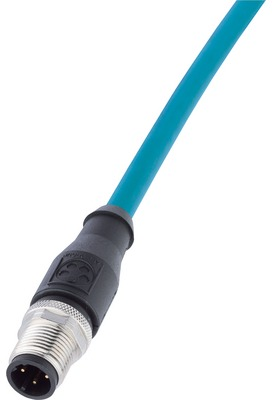

Patch cable, M12-cable plug, straight to open end, Cat 5e, SF/UTP, PUR, 5 m, blue, 2171106
Order No.: 33P4462
EAN: 4044776436836
MPN:
2171106
IE-5-M12D-S-5-P-2-26-7-OE
Unit Price (€ / pc.)
30.8567 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor-actuator cable, 2171106, LAPP
Industrial Ethernet Patchcord, Cat.5e, straight plug M12 on free conductor end, D-coded, PUR, flexible
Features
- Mechanical and plant engineering
- Halogen-free
- Assembly time
- Interference signals
- Waterproof
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Patchkabel | |
| AWG-Leiterquerschnitt | AWG 26-7 | |
| Farbe | blau | |
| Halogenfrei | Yes | |
| Kabel | SF/UTP | |
| Kabellänge | 5 m | |
| Kategorie | Cat 5e | |
| Material | PUR | |
| Rasthebelschutz vorhanden | No | |
| Schutzart (IP) | IP67/IP69 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
