55503282 | LAPP

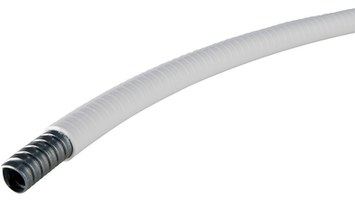

Spiral protective hose, inside Ø 26.5 mm, outside Ø 33.1 mm, BR 120 mm, special plastic, zinc-plated, white, 55503282
Unit Price (€ / mtr.)
32.4037 € *
Available: 0 mtr.
Leadtime: On Request **
The for food suitable protection conduit SILVYN® FG offers a high protection against liquids and is due to his smooth surface easy to clean. Through these special characteristics, the conduit is particularly suitable for mechanical engineering, plant engineering, pharmaceutical industry, food packaging machines and for the food and beverage industry; hereby, especially for the production and processing of milk and meat products.
Technical specifications
| Outer diameter | 33.1 mm | |
| Bending radius | 120 mm | |
| Colour | white | |
| Flame-retardant | No | |
| Inner diameter | 26.5 mm | |
| Material | special plastic, zinc-plated | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -20 °C | |
| Nominal width | 25 mm | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 83071000 |
| Original Packaging | Ring with 30 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
