55503283 | LAPP

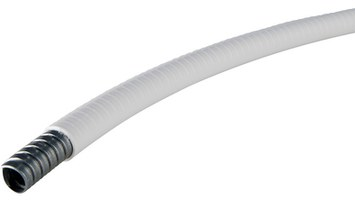

Spiral protective hose, inside Ø 35.1 mm, outside Ø 41.8 mm, BR 135 mm, special plastic, zinc-plated, white, 55503283

Order No.: 31P9649
EAN: 4044776109464
MPN:
55503283
SILVYNTCNW FG 1 1/4 35,1x41,8
Series: SILVYN FG
LAPP
55503283 LAPP Protective Tubes
Image may differ
Unit Price (€ / mtr.)
47.2549 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
47.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15 mtr.
47.2549 €
The for food suitable protection conduit SILVYN® FG offers a high protection against liquids and is due to his smooth surface easy to clean. Through these special characteristics, the conduit is particularly suitable for mechanical engineering, plant engineering, pharmaceutical industry, food packaging machines and for the food and beverage industry; hereby, especially for the production and processing of milk and meat products.
Technical specifications
Outer diameter 41.8 mm
Bending radius 135 mm
Colour white
Flame-retardant No
Inner diameter 35.1 mm
Material special plastic, zinc-plated
max. operating temperature 60 °C
min. operating temperature -20 °C
Nominal width 32 mm
Degree of protection (IP) IP67
Logistics
Country of origin US
Customs tariff number 83071000
Original Packaging Ring with 15 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
