55503284 | LAPP

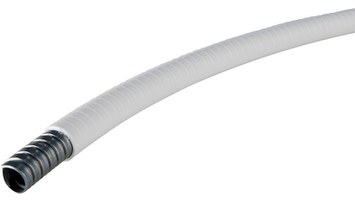

Spiral protective hose, inside Ø 40.3 mm, outside Ø 47.8 mm, BR 165 mm, special plastic, zinc-plated, white, 55503284
Unit Price (€ / mtr.)
57.0367 € *
Available: 0 mtr.
Leadtime: On Request **
The for food suitable protection conduit SILVYN® FG offers a high protection against liquids and is due to his smooth surface easy to clean. Through these special characteristics, the conduit is particularly suitable for mechanical engineering, plant engineering, pharmaceutical industry, food packaging machines and for the food and beverage industry; hereby, especially for the production and processing of milk and meat products.
Technical specifications
| Inner diameter | 40.3 mm | |
| Outer diameter | 47.8 mm | |
| Nominal width | 38 mm | |
| Bending radius | 165 mm | |
| Material | Spezial-Kunststoff, verzinkt | |
| Colour | weiß | |
| Degree of protection (IP) | IP67 | |
| Flame-retardant | No | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 60 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 83071000 |
| Original Packaging | Ring mit 15 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
