61713010 | LAPP

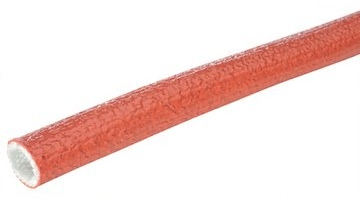

Protective hose, inside Ø 19 mm, outside Ø 25 mm, Glass fiber, red, 61713010

Order No.: 32P308
EAN: 4044773215168
MPN:
61713010
SILVYNTCNW HIPROJACKET NW 19
Series: SILVYN HIPROJACKET
LAPP
61713010 LAPP Protective Tubes
Image may differ
Print
Key Specification:
Inner diameter 19 mm
Outer diameter 25 mm
Nominal width 19 mm
Material Glass fiber
Show 22 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
58.2981 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
58.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15 mtr.
58.2981 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 25 mm
Colour red
Flame-retardant Yes
Inner diameter 19 mm
Material Glass fiber
max. operating temperature 260 °C
min. operating temperature -55 °C
Nominal width 19 mm
Degree of protection (IP) IP67
Show similar products 0
Logistics
Country of origin US
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
