61713019 | LAPP

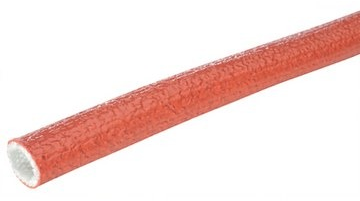

Protective hose, inside Ø 51 mm, outside Ø 57 mm, Glass fiber, red, 61713019

Order No.: 32P317
EAN: 4044774405759
MPN:
61713019
SILVYNTCNW HIPROJACKET NW 51
Series: SILVYN HIPROJACKET
LAPP
61713019 LAPP Protective Tubes
Image may differ
Print
Key Specification:
Inner diameter 51 mm
Outer diameter 57 mm
Nominal width 51 mm
Material Glass fiber
Show 22 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
124.7239 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
124.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15 mtr.
124.7239 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 57 mm
Colour red
Flame-retardant Yes
Inner diameter 51 mm
Material Glass fiber
max. operating temperature 260 °C
min. operating temperature -55 °C
Nominal width 51 mm
Degree of protection (IP) IP67
Show similar products 0
Logistics
Country of origin US
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
