61747370 | LAPP

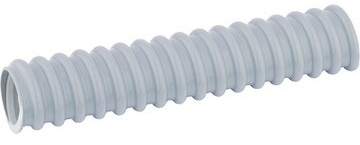

Corrugated hose, inside Ø 12 mm, outside Ø 16.5 mm, BR 25 mm, PVC, gray, 61747370

Order No.: 31P9524
EAN: 4044773375084
MPN:
61747370
SILVYNTCNW EL 12,0x16,5 S
Series: SILVYN EL
LAPP
61747370 LAPP Protective Tubes
Image may differ
Print
Key Specification:
Inner diameter 12 mm
Outer diameter 16.5 mm
Nominal width 16 mm
Bending radius 25 mm
Material PVC
Show 17 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
4.7481 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
4.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 mtr.
4.7481 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 16.5 mm
Bending radius 25 mm
Colour gray
Flame-retardant No
Inner diameter 12 mm
Material PVC
max. operating temperature 70 °C
min. operating temperature -20 °C
Nominal width 16 mm
Degree of protection (IP) IP65
Show similar products 0
Logistics
Country of origin GB
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
