61751795 | LAPP

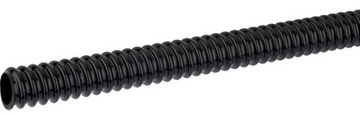

Corrugated hose, inside Ø 28 mm, outside Ø 33.5 mm, BR 60 mm, PVC, black, 61751795

Order No.: 31P9587
EAN: 4044777304691
MPN:
61751795
SILVYNTCNW ELU 28,0x33,5
Series: SILVYN ELU
LAPP
61751795 LAPP Protective Tubes
Image may differ
Print
Key Specification:
Inner diameter 28 mm
Outer diameter 33.5 mm
Nominal width 32 mm
Bending radius 60 mm
Material PVC
Show 17 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
14.1372 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
14.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 mtr.
14.1372 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 33.5 mm
Bending radius 60 mm
Colour black
Flame-retardant No
Inner diameter 28 mm
Material PVC
max. operating temperature 70 °C
min. operating temperature -20 °C
Nominal width 32 mm
Degree of protection (IP) IP65
Show similar products 0
Logistics
Country of origin GB
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
