61754045 | LAPP

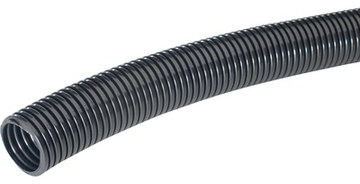

Corrugated hose, inside Ø 22.8 mm, outside Ø 28.5 mm, BR 50 mm, PA, black, 61754045

Order No.: 32P114
EAN: 4044773440331
MPN:
61754045
SILVYNTCNW FPASPA6 28/22,8x28,
Series: SILVYN FPAS PA6
LAPP
61754045 LAPP Protective Tubes
Image may differ
Print
Key Specification:
Inner diameter 22.8 mm
Outer diameter 28.5 mm
Nominal width 28 mm
Bending radius 50 mm
Material PA
Show 13 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
5.1884 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
5.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 mtr.
5.1884 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 28.5 mm
Bending radius 50 mm
Colour black
Flame-retardant Yes
Inner diameter 22.8 mm
Material PA
max. operating temperature 120 °C
min. operating temperature -40 °C
Nominal width 28 mm
Degree of protection (IP) IP66/IP67/IP68/IP69
Show similar products 0
Logistics
Country of origin GB
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
