61802090 | LAPP

Protective hose, inside Ø 11 mm, outside Ø 14 mm, BR 34 mm, steel, galvanized, silver, 61802090

Order No.: 31P9631
EAN: 4044773206913
MPN:
61802090
SILVYNTCNW AS 14 / 11x14
Series: SILVYN AS
LAPP

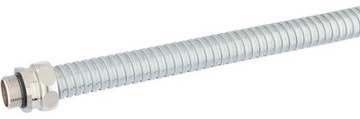

61802090 LAPP Protective Tubes Image 1

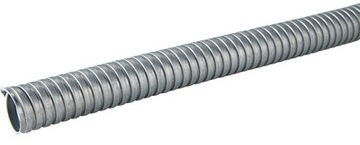

61802090 LAPP Protective Tubes Image 2
Image may differ
Print
Key Specification:
Inner diameter 11 mm
Outer diameter 14 mm
Nominal width 14 mm
Bending radius 34 mm
Material steel, galvanized
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
3.4510 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
3.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 mtr.
3.4510 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 14 mm
Bending radius 34 mm
Colour silver
Flame-retardant No
Inner diameter 11 mm
Material steel, galvanized
max. operating temperature 220 °C
min. operating temperature -50 °C
Nominal width 14 mm
Degree of protection (IP) IP40
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 83071000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
