61803972 | LAPP

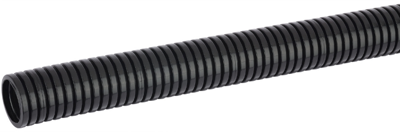

Protective hose, inside Ø 46.7 mm, outside Ø 54.2 mm, BR 70 mm, PA, black, 61803972

Order No.: 33P3900
EAN: 4044777578191
MPN:
61803972
FIPLOCK HPDF 48/46,7X54,2 BK 25M
Series: FIPLOCK PA12
LAPP
61803972 LAPP Protective Tubes
Image may differ
Unit Price (€ / mtr.)
44.6012 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
44.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 mtr.
44.6012 €

Protective sleeve, 61803972, LAPP

The cable protection conduit FIPLOCK HPDF is made of PA12 with highly flame retarded that features and can be used for cable protection applications where low fire hazard is mandatory. In addition is the protection conduit self-extinguishing has a low smoke characteristics and is due to his mechanical properties the conduit can be used for technical applications such like rolling stock and public transport equipment.

Features

  • Suitable for outdoor use
  • Good chemical resistance
  • Flame-retardant
  • Halogen-free
  • Cold-resistant
  • Assembly time
  • Low weight
  • Oil-resistant
  • Waterproof
Technical specifications
Outer diameter 54.2 mm
Bending radius 70 mm
Colour black
Flame-retardant Yes
Inner diameter 46.7 mm
Material PA
max. operating temperature 105 °C
min. operating temperature -45 °C
Nominal width 48 mm
Logistics
Country of origin QU
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
