61806160 | LAPP

Corrugated hose two-piece, slit, inside Ø 23.4 mm, outside Ø 30.8 mm, BR 30.8 mm, PP, black, 61806160

Order No.: 32P1131
EAN: 4044777090723
MPN:
61806160
SILVYNTCNW PP UV 23/23,4x30,8
Series: SILVYN SPLIT
LAPP

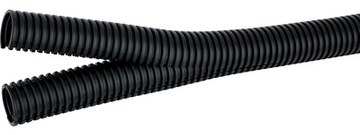

61806160 LAPP Protective Tubes Image 1

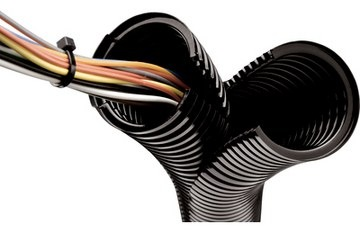

61806160 LAPP Protective Tubes Image 2
Image may differ
Print
Key Specification:
Inner diameter 23.4 mm
Outer diameter 30.8 mm
Nominal width 23 mm
Bending radius 30.8 mm
Material PP
Show 12 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
14.2800 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
14.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 mtr.
14.2800 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 30.8 mm
Bending radius 30.8 mm
Colour black
Flame-retardant No
Inner diameter 23.4 mm
Material PP
max. operating temperature 105 °C
min. operating temperature -40 °C
Nominal width 23 mm
Degree of protection (IP) IP43
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
