61806180 | LAPP

Corrugated hose two-piece, slit, inside Ø 31 mm, outside Ø 41.4 mm, BR 41.4 mm, PP, black, 61806180

Order No.: 32P1133
EAN: 4044777090747
MPN:
61806180
SILVYNTCNW PP UV 37/31,0x41,4
Series: SILVYN SPLIT
LAPP

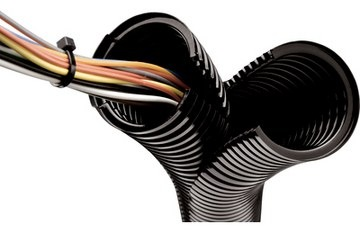

61806180 LAPP Protective Tubes Image 1

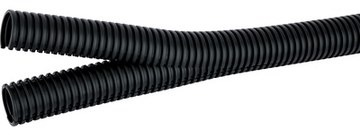

61806180 LAPP Protective Tubes Image 2
Image may differ
Print
Key Specification:
Innendurchmesser 31 mm
Außendurchmesser 41.4 mm
Nennweite 37 mm
Biegeradius 41.4 mm
Material PP
Show 12 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
21.3724 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
21.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 mtr.
21.3724 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Außendurchmesser 41.4 mm
Biegeradius 41.4 mm
Farbe schwarz
Flammwidrig No
Innendurchmesser 31 mm
Material PP
max. Temperatur 105 °C
min. Temperatur -40 °C
Nennweite 37 mm
Schutzart (IP) IP43
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 39173200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
