61806555 | LAPP

Corrugated hose with slot, inside Ø 8.4 mm, outside Ø 11.4 mm, BR 24 mm, PA, black, 61806555

Order No.: 32P1049
EAN: 4044773638424
MPN:
61806555
SILVYNTCNW SINUS PA6 8,4x11,4
Series: SILVYN SINUS
LAPP

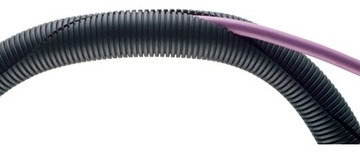

61806555 LAPP Protective Tubes Image 1

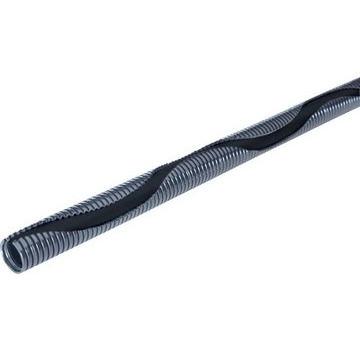

61806555 LAPP Protective Tubes Image 2
Image may differ
Print
Key Specification:
Inner diameter 8.4 mm
Outer diameter 11.4 mm
Nominal width 8.5 mm
Bending radius 24 mm
Material PA
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
2.2372 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
2.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 mtr.
2.2372 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Outer diameter 11.4 mm
Bending radius 24 mm
Colour black
Flame-retardant Yes
Inner diameter 8.4 mm
Material PA
max. operating temperature 140 °C
min. operating temperature -40 °C
Nominal width 8.5 mm
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
