61806617 | LAPP

Corrugated hose two-piece, slit, inside Ø 16 mm, outside Ø 21.5 mm, BR 20 mm, PP, black, 61806617

Order No.: 32P1118
EAN: 4044777090822
MPN:
61806617
SILVYNTCNW PP 16/16,0x21,5
Series: SILVYN SPLIT
LAPP

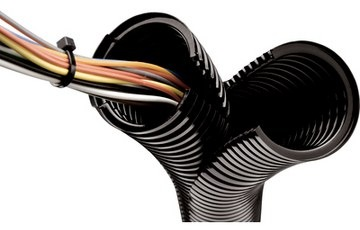

61806617 LAPP Protective Tubes Image 1

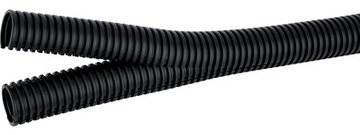

61806617 LAPP Protective Tubes Image 2
Image may differ
Print
Key Specification:
Inner diameter 16 mm
Outer diameter 21.5 mm
Nominal width 16 mm
Bending radius 20 mm
Material PP
Show 12 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
8.5085 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
8.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 mtr.
8.5085 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations
Technical specifications
Outer diameter 21.5 mm
Bending radius 20 mm
Colour black
Flame-retardant No
Inner diameter 16 mm
Material PP
max. operating temperature 135 °C
min. operating temperature -40 °C
Nominal width 16 mm
Degree of protection (IP) IP43
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
