61806621 | LAPP

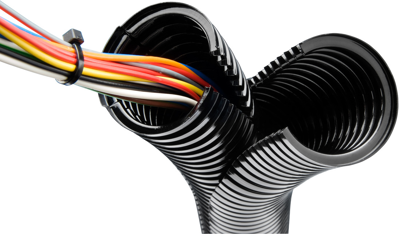

Corrugated hose with slot, inside Ø 6.3 mm, outside Ø 10 mm, BR 15 mm, PA, black, 61806621
Order No.: 33P340
EAN: 4044774473802
MPN:
61806621
SILVYN SPLIT PA6 7 / 6,3X10,0 BK 50M
Series: SILVYN SPLIT
Unit Price (€ / mtr.)
5.9381 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Parallel corrugated slotted protective cable conduit, 61806621, LAPP
Features
- Halogen-free
- Abrasion-resistant
- High resistance to oil, petrol, acids and other chemicals
- Low rodent-protection
- Fast and easy assembly
Applications
- Vehicle construction
- Shipbuilding
- Mechanical engineering
- Electrical industry
- Used in areas where cables and wires need to be protected after assembly
Technical specifications
| Outer diameter | 10 mm | |
| Bending radius | 15 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 6.3 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 6 mm | |
| Degree of protection (IP) | IP43 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 50 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
