64400200 | LAPP

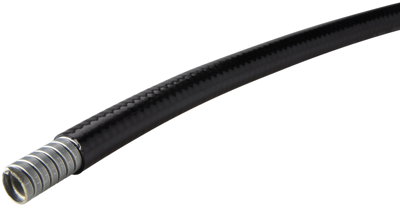

Protective hose, inside Ø 10.1 mm, outside Ø 14.4 mm, BR 65 mm, PUR/steel, black, 64400200
Order No.: 33P3552
EAN: 4044773280395
MPN:
64400200
SILVYN HFX 5/16'' 10,1X14,4 BK 30M
Series: SILVYN HFX
Unit Price (€ / mtr.)
20.0872 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Protective conduit, 64400200, LAPP
The 64400200 is a liquidtight, chemical resistant conduit with interlocked profile and a PUR jacket. This product is made of a galvanized steel belt with a hooking profile, a cotton thread and a polyurethane coat, conduits larger than the NW 1 1/2“are produced with a Agraff-profile. The conduit can be used for example by rail vehicle, in the ship construction and in the chemical industry.
Features
- Suitable for outdoor use
- Good chemical resistance
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
- UV-resistant
Technical specifications
Außendurchmesser | 14.4 mm | |
Biegeradius | 65 mm | |
Farbe | schwarz | |
Flammwidrig | Yes | |
Innendurchmesser | 10.1 mm | |
Material | PUR/Stahl | |
max. Temperatur | 105 °C | |
min. Temperatur | -55 °C |
Download
Logistics
Ursprungsland | NL |
Zolltarifnummer | 83071000 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
