64400240 | LAPP

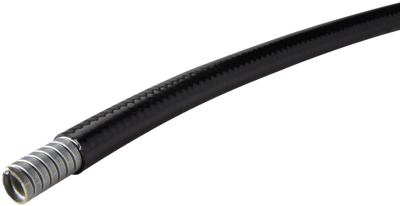

Protective hose, inside Ø 26.5 mm, outside Ø 33.1 mm, BR 170 mm, PUR/steel, black, 64400240
Order No.: 33P3547
EAN: 4044773280357
MPN:
64400240
SILVYN HFX 1'' 26,5X33,1 BK 30M
Series: SILVYN HFX
Unit Price (€ / mtr.)
42.0427 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Protective conduit, 64400240, LAPP
The 64400240 is a liquidtight, chemical resistant conduit with interlocked profile and a PUR jacket. This product is made of a galvanized steel belt with a hooking profile, a cotton thread and a polyurethane coat, conduits larger than the NW 1 1/2“are produced with a Agraff-profile. The conduit can be used for example by rail vehicle, in the ship construction and in the chemical industry.
Features
- Suitable for outdoor use
- Good chemical resistance
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
- UV-resistant
Technical specifications
| Außendurchmesser | 33.1 mm | |
| Biegeradius | 170 mm | |
| Farbe | schwarz | |
| Flammwidrig | Yes | |
| Innendurchmesser | 26.5 mm | |
| Material | PUR/Stahl | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 83071000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
