64400243 | LAPP

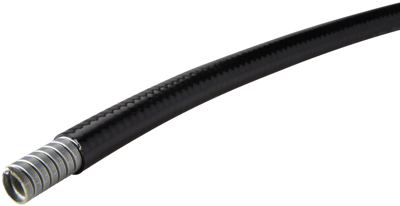

Protective hose, inside Ø 26.5 mm, outside Ø 33.1 mm, BR 170 mm, PUR/steel, black, 64400243
Order No.: 33P3555
EAN: 4044776758907
MPN:
64400243
SILVYN HFX-V0 1'' 26,5X33,1 BK 30M
Series: SILVYN HFX-V0
Unit Price (€ / mtr.)
52.2886 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Cable protection hose, 64400243, LAPP
The 64400243is a rugged, flexible and halogen free cable protection conduit with a galvanised steel band and a smooth polyurethane coat. The protection conduit resists falling rock, snow, ice and dirt, also by lower temperatures. Due to his features the protection conduit SILVYN HFX-V0 can be used in all railway applications with changing environmental conditions.
Features
- Suitable for outdoor use
- Good chemical resistance
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
- UV-resistant
Technical specifications
| Außendurchmesser | 33.1 mm | |
| Biegeradius | 170 mm | |
| Farbe | schwarz | |
| Flammwidrig | Yes | |
| Innendurchmesser | 26.5 mm | |
| Material | PUR/Stahl | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -50 °C |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 83071000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
