64400245 | LAPP

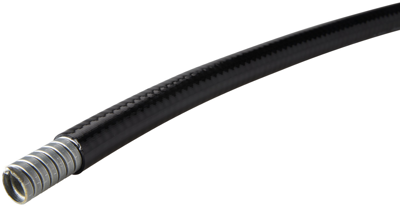

Protective hose, inside Ø 40.3 mm, outside Ø 47.8 mm, BR 250 mm, PUR/steel, black, 64400245
Order No.: 33P3553
EAN: 4044776758921
MPN:
64400245
SILVYN HFX-V0 1 1/2'' 40,3X47,8 BK 15M
Series: SILVYN HFX-V0
Unit Price (€ / mtr.)
205.1441 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Cable protection hose, 64400245, LAPP
The 64400245is a rugged, flexible and halogen free cable protection conduit with a galvanised steel band and a smooth polyurethane coat. The protection conduit resists falling rock, snow, ice and dirt, also by lower temperatures. Due to his features the protection conduit SILVYN HFX-V0 can be used in all railway applications with changing environmental conditions.
Features
- Suitable for outdoor use
- Good chemical resistance
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
- UV-resistant
Technical specifications
| Außendurchmesser | 47.8 mm | |
| Biegeradius | 250 mm | |
| Farbe | schwarz | |
| Flammwidrig | Yes | |
| Innendurchmesser | 40.3 mm | |
| Material | PUR/Stahl | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -50 °C |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 83071000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
