64400246 | LAPP
Protective hose, inside Ø 51.6 mm, outside Ø 59.9 mm, BR 300 mm, PUR/steel, black, 64400246
Order No.: 33P3557
EAN: 4044776758938
MPN:
64400246
SILVYN HFX-V0 2'' 51,6X59,9 BK 15M
Series: SILVYN HFX-V0
Unit Price (€ / mtr.)
232.3951 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

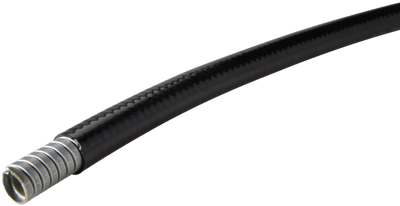

Cable protection hose, 64400246, LAPP
The 64400246is a rugged, flexible and halogen free cable protection conduit with a galvanised steel band and a smooth polyurethane coat. The protection conduit resists falling rock, snow, ice and dirt, also by lower temperatures. Due to his features the protection conduit SILVYN HFX-V0 can be used in all railway applications with changing environmental conditions.
Features
- Suitable for outdoor use
- Good chemical resistance
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
- UV-resistant
Technical specifications
| Outer diameter | 59.9 mm | |
| Bending radius | 300 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 51.6 mm | |
| Material | PUR/steel | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -50 °C |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 83071000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
