64400248 | LAPP

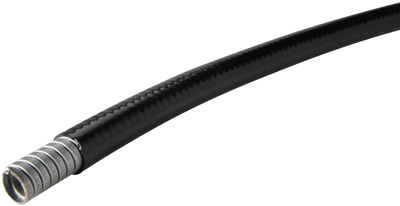

Protective hose, inside Ø 10.1 mm, outside Ø 14.4 mm, BR 65 mm, PUR/steel, black, 64400248

Order No.: 33P3560
EAN: 4044777342808
MPN:
64400248
SILVYN HFX-V0 5/16'' 10,1X14,4 BK 30M
Series: SILVYN HFX-V0
LAPP
64400248 LAPP Protective Tubes
Image may differ
Unit Price (€ / mtr.)
30.0356 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
30.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 mtr.
30.0356 €

Cable protection hose, 64400248, LAPP

The 64400248is a rugged, flexible and halogen free cable protection conduit with a galvanised steel band and a smooth polyurethane coat. The protection conduit resists falling rock, snow, ice and dirt, also by lower temperatures. Due to his features the protection conduit SILVYN HFX-V0 can be used in all railway applications with changing environmental conditions.

Features

  • Suitable for outdoor use
  • Good chemical resistance
  • Halogen-free
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Temperature-resistant
  • UV-resistant
Technical specifications
Outer diameter 14.4 mm
Bending radius 65 mm
Colour black
Flame-retardant Yes
Inner diameter 10.1 mm
Material PUR/steel
max. operating temperature 105 °C
min. operating temperature -50 °C
Logistics
Country of origin NL
Customs tariff number 83071000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
