64400250 | LAPP

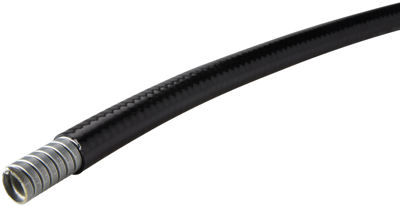

Protective hose, inside Ø 35.1 mm, outside Ø 41.8 mm, BR 215 mm, PUR/steel, black, 64400250

Order No.: 33P3546
EAN: 4044773280340
MPN:
64400250
SILVYN HFX 1 1/4'' 35,1X41,8 BK 15M
Series: SILVYN HFX
LAPP
64400250 LAPP Protective Tubes
Image may differ
Unit Price (€ / mtr.)
58.3695 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
58.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15 mtr.
58.3695 €

Protective conduit, 64400250, LAPP

The 64400250 is a liquidtight, chemical resistant conduit with interlocked profile and a PUR jacket. This product is made of a galvanized steel belt with a hooking profile, a cotton thread and a polyurethane coat, conduits larger than the NW 1 1/2“are produced with a Agraff-profile. The conduit can be used for example by rail vehicle, in the ship construction and in the chemical industry.

Features

  • Suitable for outdoor use
  • Good chemical resistance
  • Halogen-free
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Temperature-resistant
  • UV-resistant
Technical specifications
Outer diameter 41.8 mm
Bending radius 215 mm
Colour black
Flame-retardant Yes
Inner diameter 35.1 mm
Material PUR/steel
max. operating temperature 105 °C
min. operating temperature -55 °C
Logistics
Country of origin NL
Customs tariff number 83071000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
