381166323 | LAPP

Plug, M12, 5 pole, screw connection, screw locking, straight, 381166323

Order No.: 67F9980
EAN: 4064728618332
MPN:
381166323
EPIC SENSOR M12B F6 5 SR1220 4-8

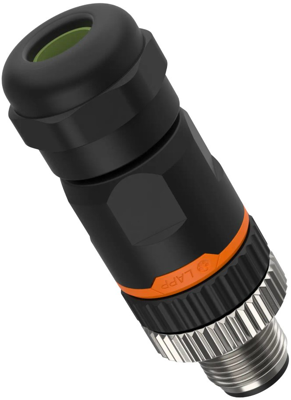

381166323 LAPP Sensor-Actuator Connectors Image 1

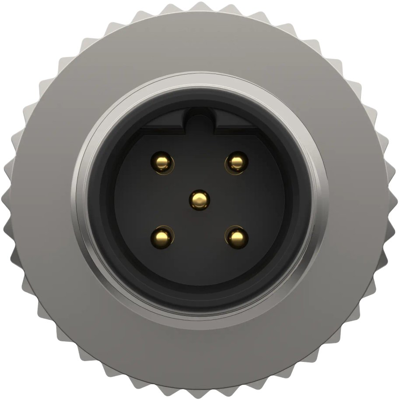

381166323 LAPP Sensor-Actuator Connectors Image 2

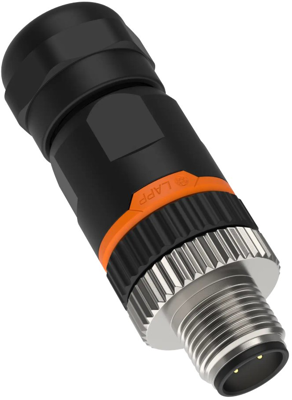

381166323 LAPP Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
8.7465 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
8.75 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7465 €
20 pcs.
8.0206 €
60 pcs.
7.5327 €
100 pcs.
7.0448 €
200 pcs.
6.5569 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, 381166323, LAPP

The 381166323 circular connector has a high stability thanks to impact-resistant polyamide. Solder termination is easy to implement, and creates a plug connection that is resistant to shock and vibrations.

Features

  • When connected, protection class IP 67 can be achieved
  • Good oil and chemical resistance

Applications

  • For fieldbus communication in PROFIBUS-based networks
Technical specifications
Version Stecker
Thread size M12
Coding B
Contact connection Schraubanschluss
contact surface vergoldet
Assembly Kabelmontage
Orientation gerade
Pin number 5-polig
Degree of protection (IP) IP67
Type of locking Schraubverriegelung
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
