381166324 | LAPP

Plug, M12, 4 pole, screw connection, screw locking, straight, 381166324

Order No.: 67F9984
EAN: 4064728618349
MPN:
381166324
EPIC DATA M12D F6 4 SR1220 4-8
Series: EPIC DATA M12D

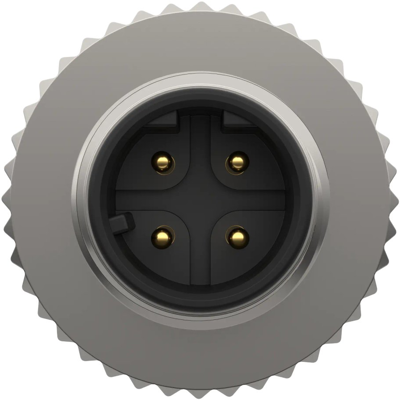

381166324 LAPP Sensor-Actuator Connectors Image 1

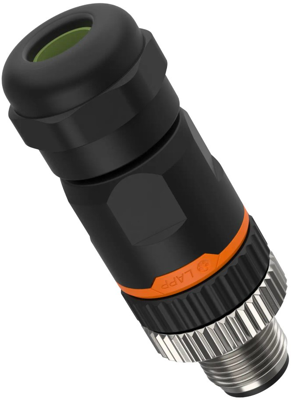

381166324 LAPP Sensor-Actuator Connectors Image 2

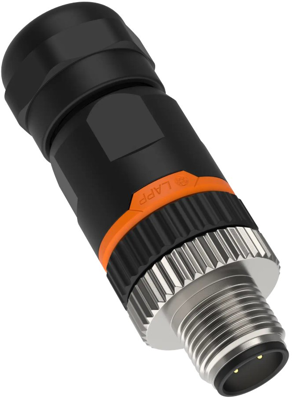

381166324 LAPP Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
9.0797 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
9.08 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0797 €
20 pcs.
8.3181 €
60 pcs.
7.8183 €
100 pcs.
7.3066 €
200 pcs.
6.8068 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, 381166324, LAPP

The 381166324 circular connector has a high stability thanks to impact-resistant polyamide. The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.

Features

  • When connected, protection class IP 67 can be achieved
  • Good oil and chemical resistance

Applications

  • Can be used universally on machine interfaces for many applications in data and signal transmission
Technical specifications
Ausführung Stecker
Gewindegröße M12
Kodierung D
Kontaktanschluss Schraubanschluss
Kontaktoberfläche vergoldet
Montage Kabelmontage
Orientierung gerade
Polzahl 4-polig
Schutzart (IP) IP67
Verriegelung Schraubverriegelung
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
