381166329 | LAPP

Jack, M12, 12 pole, solder connection, screw locking, straight, 381166329

Order No.: 67F8162
EAN: 4064728618394
MPN:
381166329
EPIC SENSOR M12A D6 12 SL1220 4-8

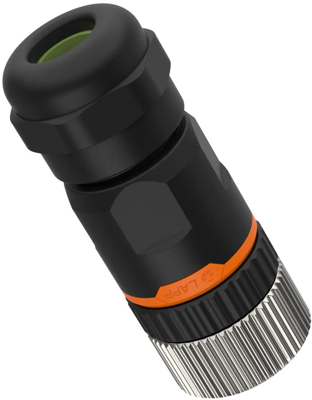

381166329 LAPP Sensor-Actuator Connectors Image 1

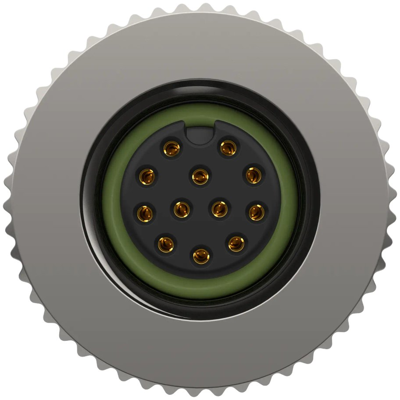

381166329 LAPP Sensor-Actuator Connectors Image 2

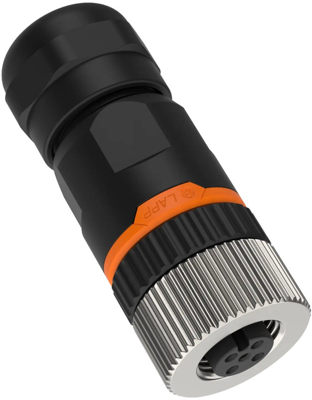

381166329 LAPP Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
10.9837 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
10.98 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9837 €
20 pcs.
10.0674 €
60 pcs.
9.4605 €
100 pcs.
8.8417 €
200 pcs.
8.2467 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, 381166329, LAPP

The 381166329 circular connector has a high stability thanks to impact-resistant polyamide. Solder termination is easy to implement, and creates a plug connection that is resistant to shock and vibrations.

Features

  • When connected, protection class IP 67 can be achieved
  • Good oil and chemical resistance

Applications

  • Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range
  • Typical application areas are sensors and actuators at field level
Technical specifications
Ausführung Buchse
Gewindegröße M12
Kodierung A
Kontaktanschluss Lötanschluss
Kontaktoberfläche vergoldet
Montage Kabelmontage
Orientierung gerade
Polzahl 12-polig
Schutzart (IP) IP67
Verriegelung Schraubverriegelung
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
