381166350 | LAPP

Plug, M12, 4 pole, screw connection, screw locking, straight, 381166350

Order No.: 67F9991
EAN: 4064728618608
MPN:
381166350
EPIC POWER M12F F6 4 SR1220 8-12
Series: EPIC POWER M12F

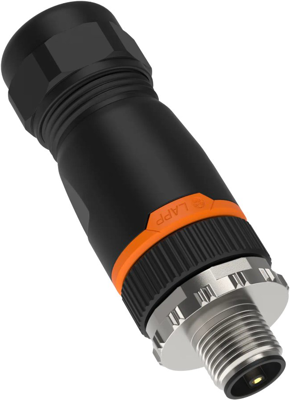

381166350 LAPP Sensor-Actuator Connectors Image 1

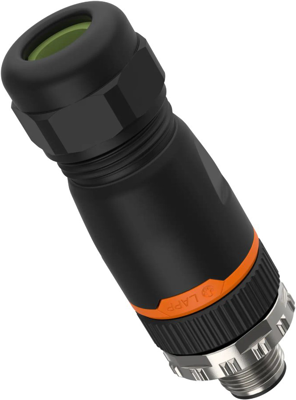

381166350 LAPP Sensor-Actuator Connectors Image 2

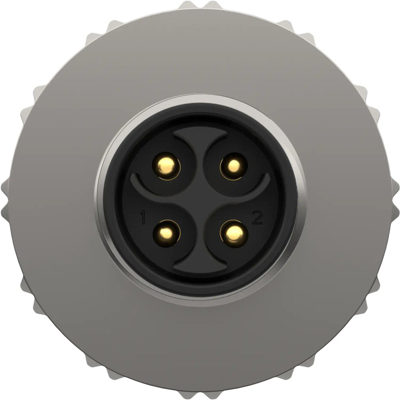

381166350 LAPP Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
9.1749 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
183.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
9.1749 €

Circular connector, 381166350, LAPP

The 381166350 circular connector with its high stability thanks to impact-resistant polyamide is suitable for supplying power to smaller devices and systems in a wide range of applications. The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.

Features

  • High power up to 16 A despite extremely space-saving design for very small devices
  • The mechanical E-coding of the connector face prevents incorrect plugging with mating connectors
  • When connected, protection class IP 67 can be achieved
  • Good oil and chemical resistance
Technical specifications
Version Stecker
Thread size M12
Coding F
Contact connection Schraubanschluss
contact surface vergoldet
Assembly Kabelmontage
Orientation gerade
Pin number 4-polig
Degree of protection (IP) IP67
Type of locking Schraubverriegelung
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
