61600010 | LAPP
Cable bundle hose, bundle-Ø 2 to 7 mm, PE, natural, 50 m, 61600010
Order No.: 33P5795
EAN: 4044773248159
MPN:
61600010
KUNSTSTOFFWENDEL KW 2 NA
Unit Price (€ / mtr.)
0.3451 € *
Available: 300 mtr.
Leadtime: 1 Week **

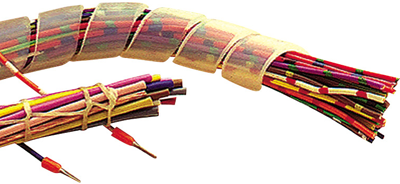

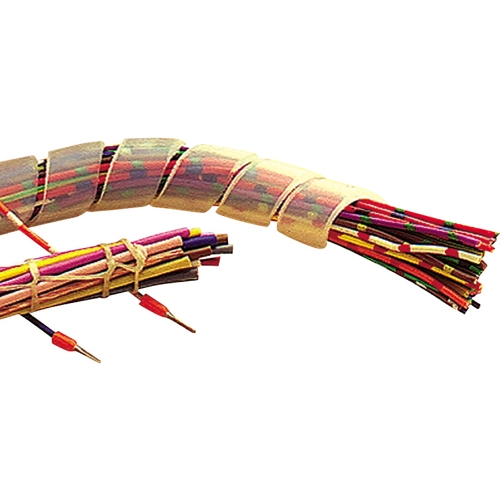

Cable bundle conduit, 61600010, LAPP
The 61600010 is a plastic coil and is suitable for a flexible bundling from cables and lines.
Features
- Good chemical resistance
- Flame-retardant
- Mechanical resistance
- UV-resistant
- Flexibility of the cables is largely preserved
- Spiral-shaped cut tube
- For time-saving cable and wire bundling
Applications
- For the manufacturing of cable harnesses with branch-offs
- For protection against mechanical stress
Technical specifications
| Farbe | natur | |
| Länge | 50 m | |
| Material | PE | |
| max. Bündeldurchmesser | 7 mm | |
| max. Temperatur | 85 °C | |
| min. Bündeldurchmesser | 2 mm | |
| min. Temperatur | -50 °C | |
| Wanddicke | 0.75 mm |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
