61830392 | LAPP
Cable bundle hose, bundle-Ø 17 to 23 mm, PP, light gray, 30 m, 61830392
Order No.: 33P4232
EAN: 4044777785292
MPN:
61830392
CABLE EATER SHR-20-PPG
Unit Price (€ / mtr.)
6.1166 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
6.12 € *
Price list
Quantity
Price per unit*
1 mtr.
6.1166 €
10 mtr.
5.4145 €
50 mtr.
4.7124 €
100 mtr.
4.2364 €
500 mtr.
3.8794 €
*incl. VAT plus shipping costs
**Subject to prior sale

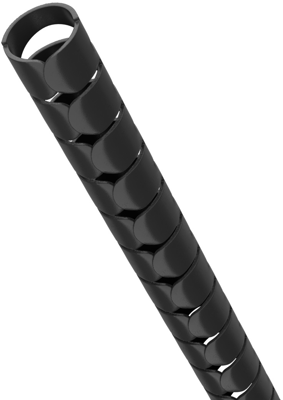

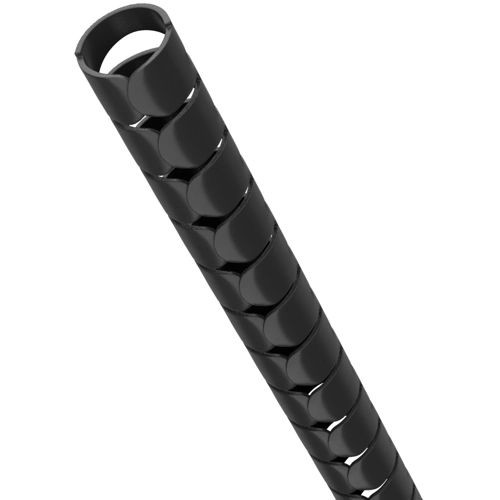

Cable cover, 61830392, LAPP
Cable-Eater is a cable conduit for bundling cables and conductors. Main application is the bundling and protection of cables in cable pre-assembly, electrical industry and switch cabinets.
Features
- Halogen-free
- Assembly time
- Good UV-resistance
Applications
- Bundling and protection for fixed and mobile electrical installations
- Robot-building
- Control cabinets
- Office machines and systems for data processing
Technical specifications
| Colour | light gray | |
| Length | 30 m | |
| Material | PP | |
| max. Bundle diameter | 23 mm | |
| max. operating temperature | 85 °C | |
| min. Bundle diameter | 17 mm | |
| min. operating temperature | -30 °C | |
| Wall thickness | 0.9 mm |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
