1591029 | LAPP
Telecommunications cable, 4-wire, A-2YF(L)2Y, 4 x 2 x 0.6 mm, black, PE, 1591029
Order No.: 33P3761
EAN: 4044774745015
MPN:
1591029
A-2YF(L)2Y...ST III BD 4x2x0,6
Series: A-2YF(L)2Y
Unit Price (€ / mtr.)
1.9873 € *
Available: 0 mtr.
Leadtime: On Request **

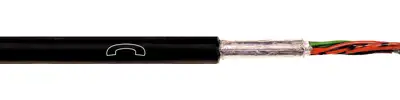

Telephone cable, 1591029, LAPP
The 1591029 is external cable for telecommunication and data processing systems. This product is UV-resistant, laterally watertight and due to the petroleum-jelly filling additionally longitudinal watertight.
Features
- Suitable for outdoor use
- Interference signals
Technical specifications
| Aderisolationsmaterial | PE | |
| Adernfarbe | DIN VDE 0816 | |
| Anzahl der Adern | 4 | |
| Außendurchmesser | 10.4 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Innendurchmesser | 0.6 mm | |
| Leiteraufbau | 4 x 2 x 0,6 mm | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,28 mm² | |
| Material | PE | |
| Temperaturbereich (bewegt) | -20 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444991 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
