1591033 | LAPP
Telecommunications cable, 30-wire, A-2YF(L)2Y, 30 x 2 x 0.6 mm, black, PE, 1591033
Order No.: 33P3758
EAN: 4044774745183
MPN:
1591033
A-2YF(L)2Y...ST III BD 30x2x0,6
Series: A-2YF(L)2Y
Unit Price (€ / mtr.)
10.3173 € *
Available: 0 mtr.
Leadtime: On Request **
Telephone cable, 1591033, LAPP

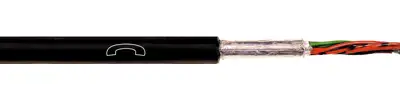

The 1591033 is external cable for telecommunication and data processing systems. This product is UV-resistant, laterally watertight and due to the petroleum-jelly filling additionally longitudinal watertight.
Features
- Suitable for outdoor use
- Interference signals
Technical specifications
| Core insulation material | PE | |
| Core colour sequence | DIN VDE 0816 | |
| Number of cores | 30 | |
| Outer diameter | 19 mm | |
| Colour | black | |
| Halogen free | No | |
| Inner diameter | 0.6 mm | |
| Cable structure | 30 x 2 x 0.6 mm | |
| Cable material | copper, bright | |
| Cable cross-section | 0.28 mm² | |
| Material | PE | |
| Temperature range (active) | -20 °C to 50 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444991 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
